Project Phases
2023 - Creigiau Cardiff: Two Storey Side Addition with Integrated Open-Plan Kitchen / Dining & Utility Room. Double Bedroom, Master Bedroom with En-suite Shower and Ground Works

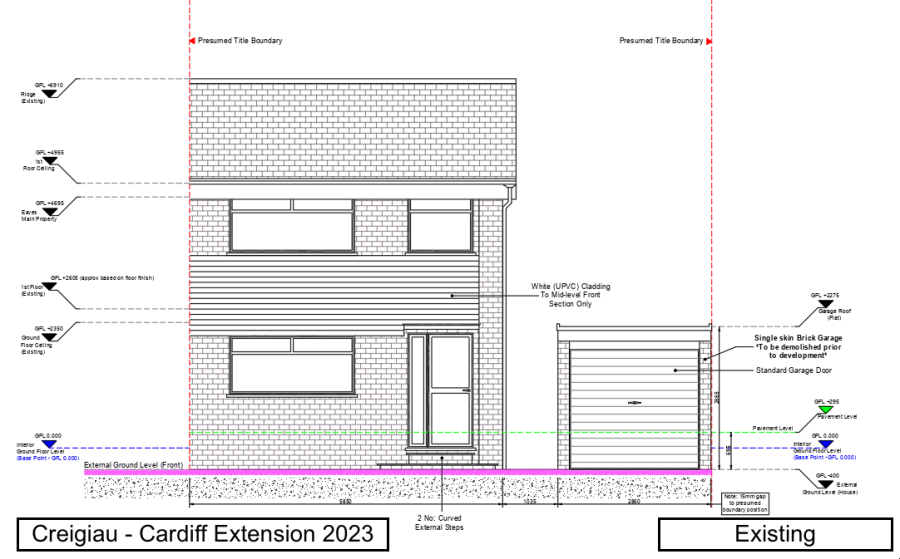

Existing Front Elevation

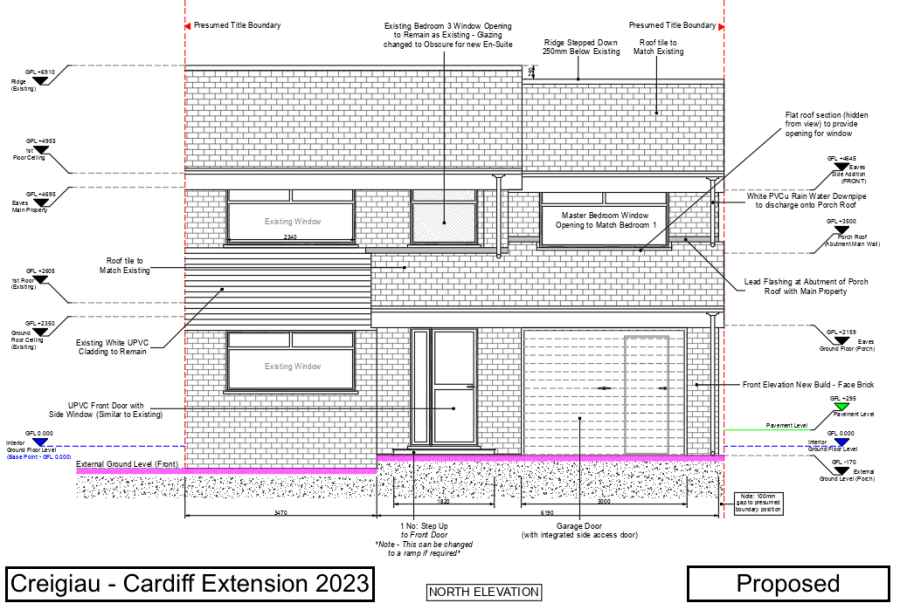

Proposed Front Elevation
Planning Stage - Complete (Agreed)

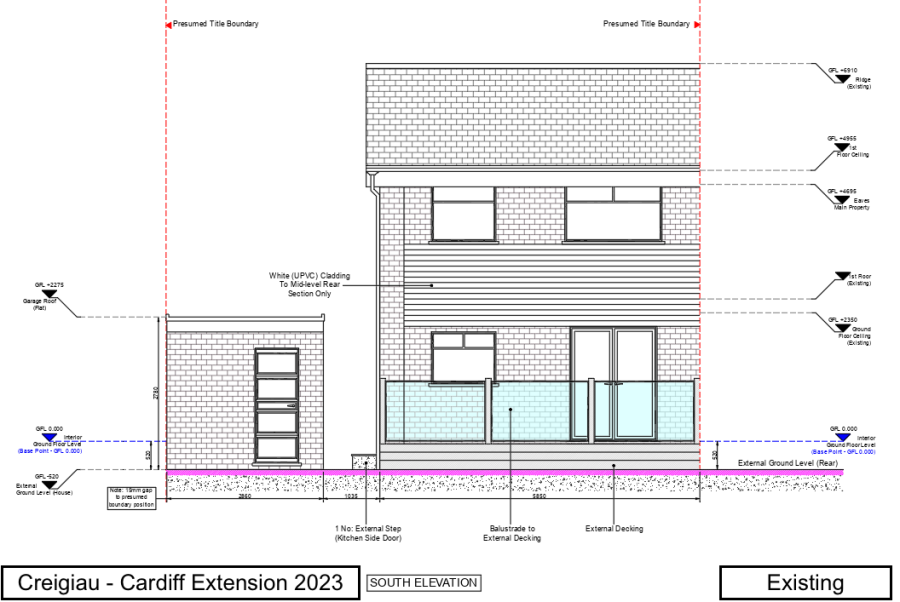

Existing Rear Elevation

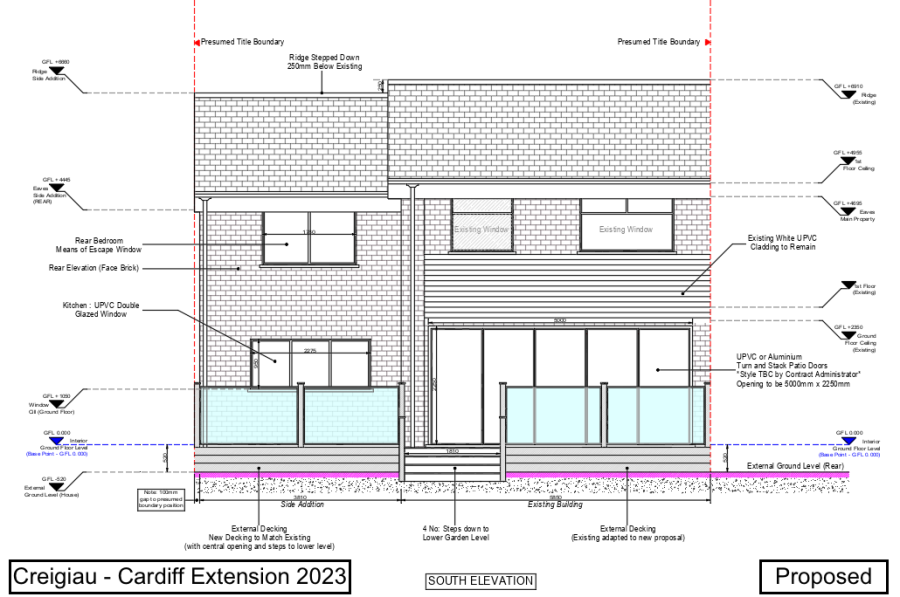

Proposed Rear Elevation

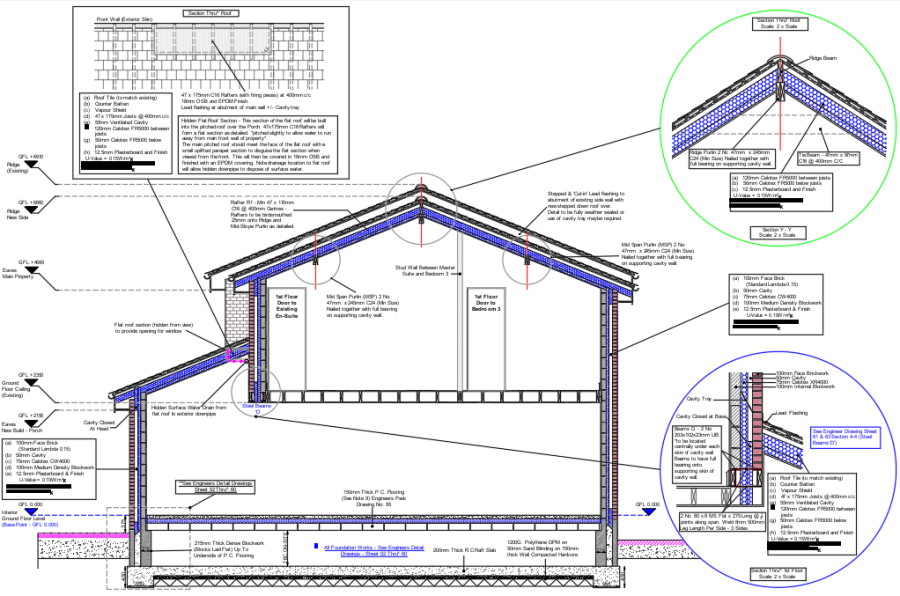

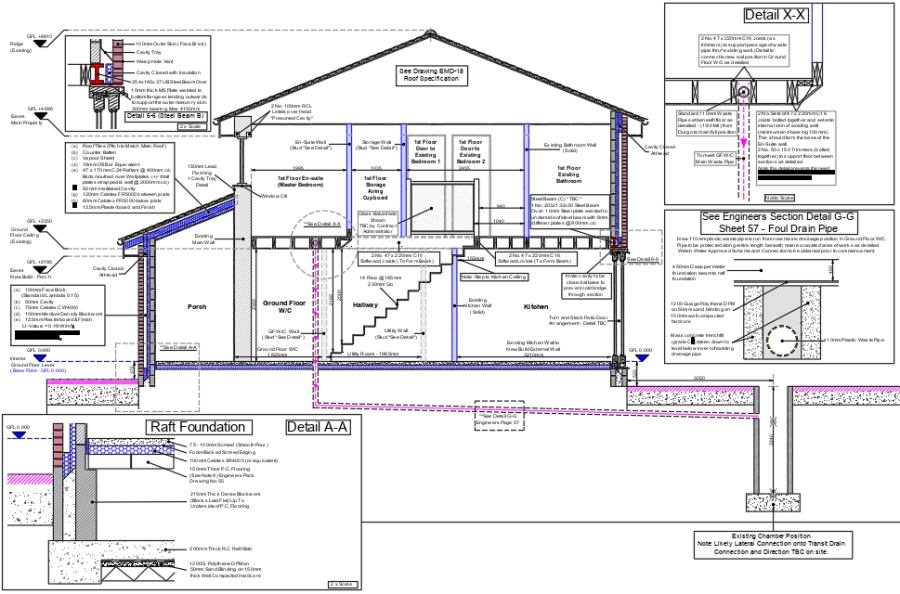

Technical Design and Structural Engineering (Complete)
Stage 1 - Excavations

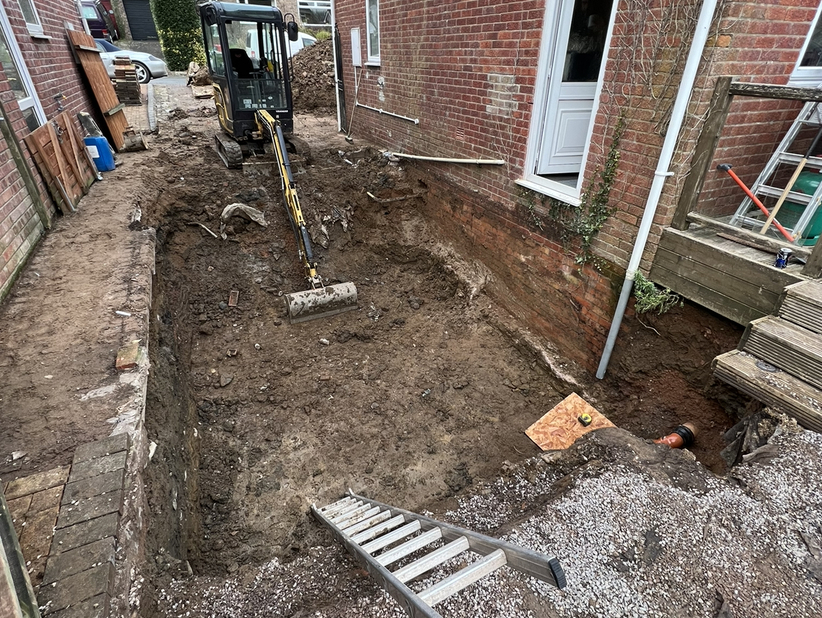

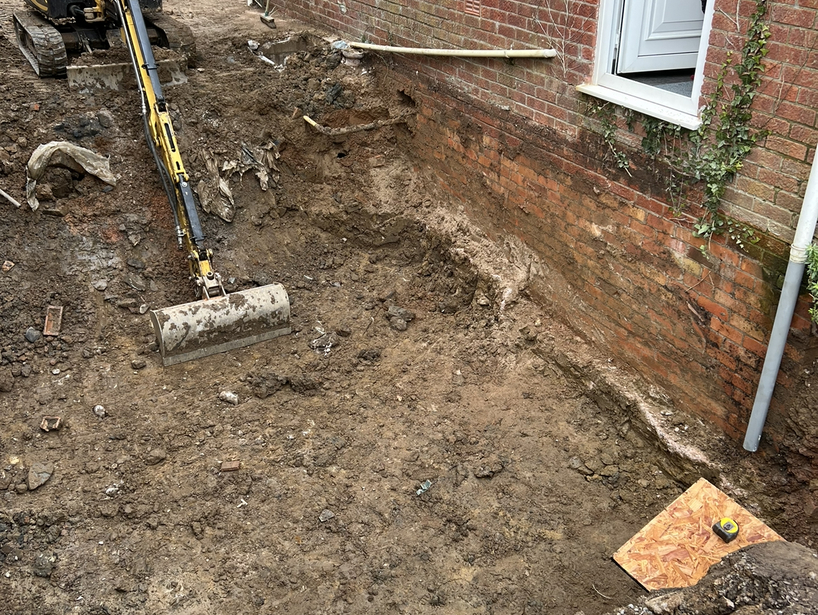

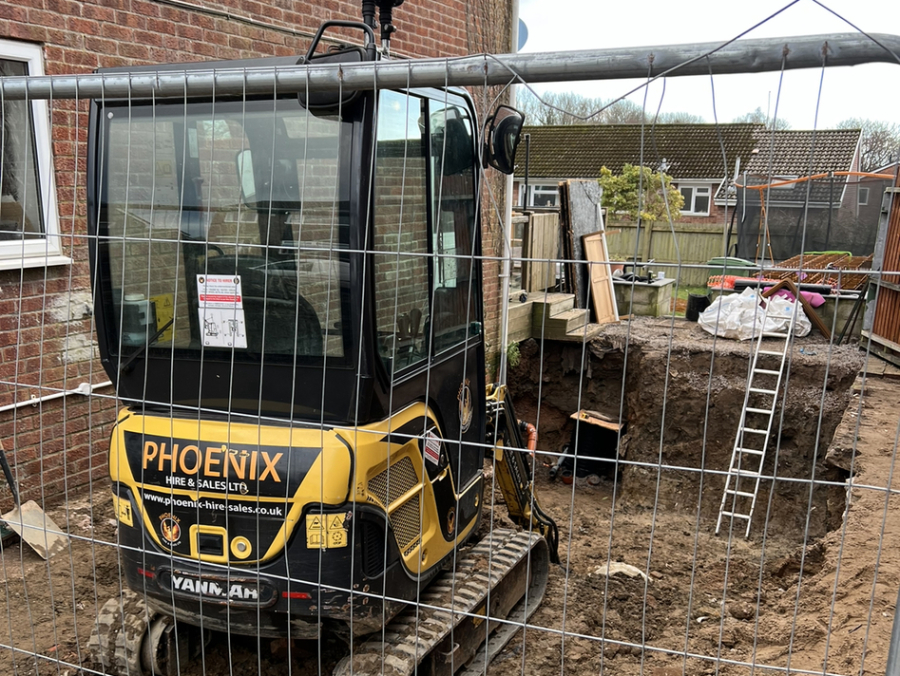

Excavation
Excavate to Good Ground
Expose Existing Foundation
Stage 2 - Ground Works - Foundation Steelwork - DPC - Concrete Pour 1

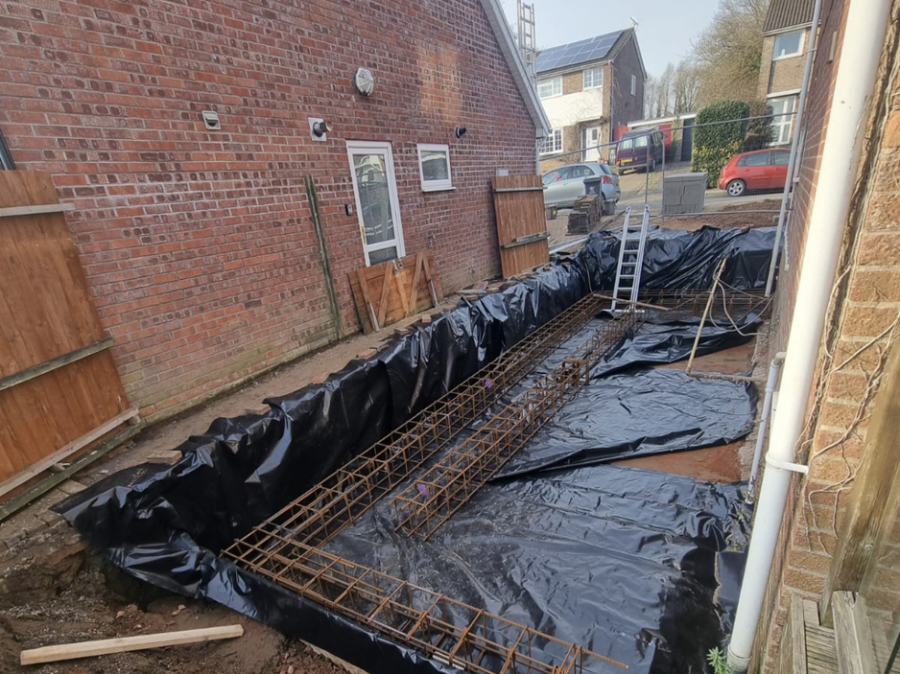

Foundation Steelwork

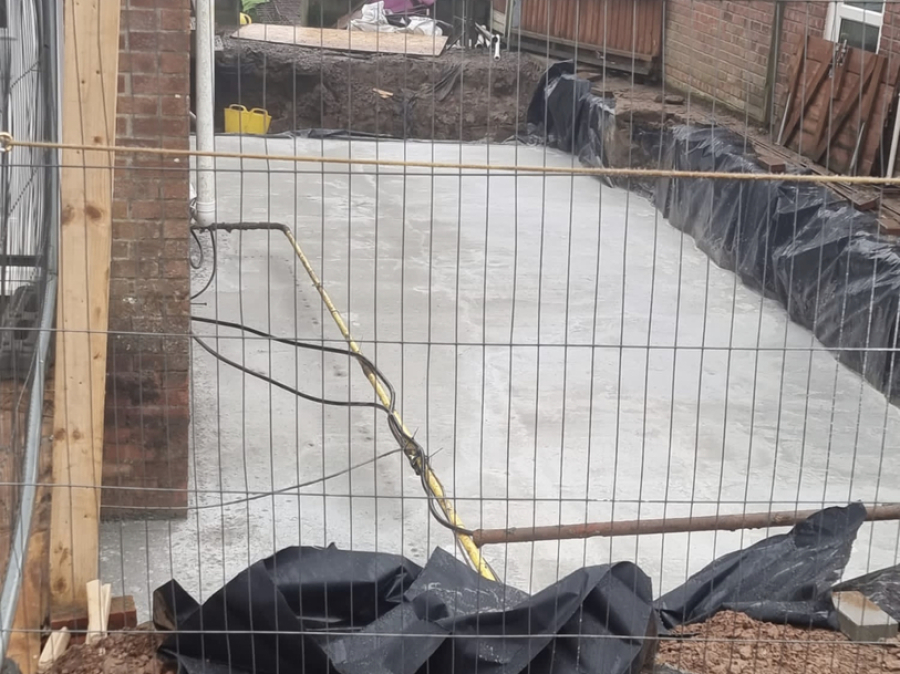

Concrete Pour

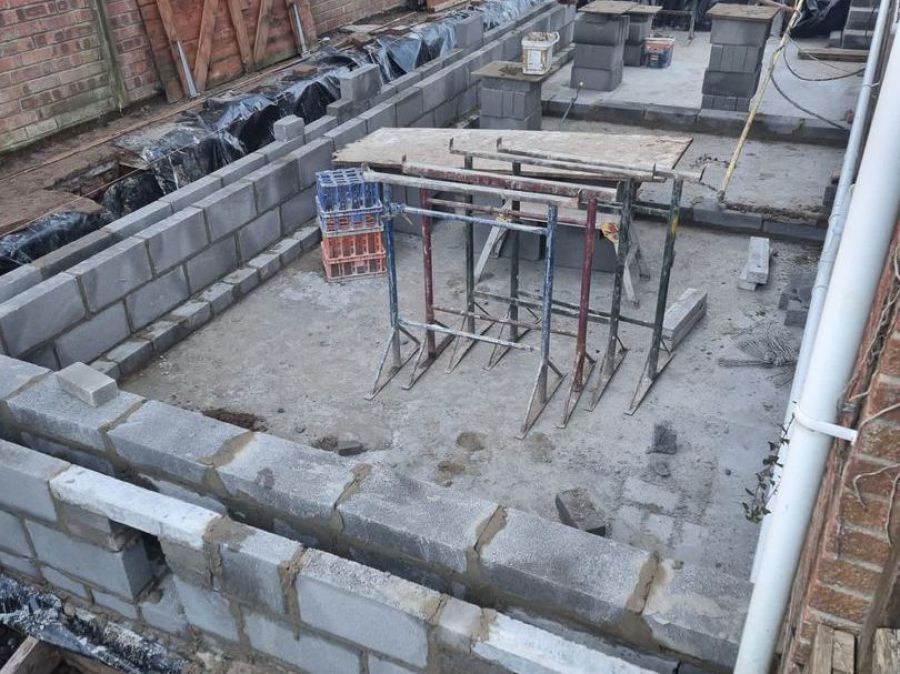

Drainage & Phase 1 Blocks
Stage 3 - Construction of Cavity Walls

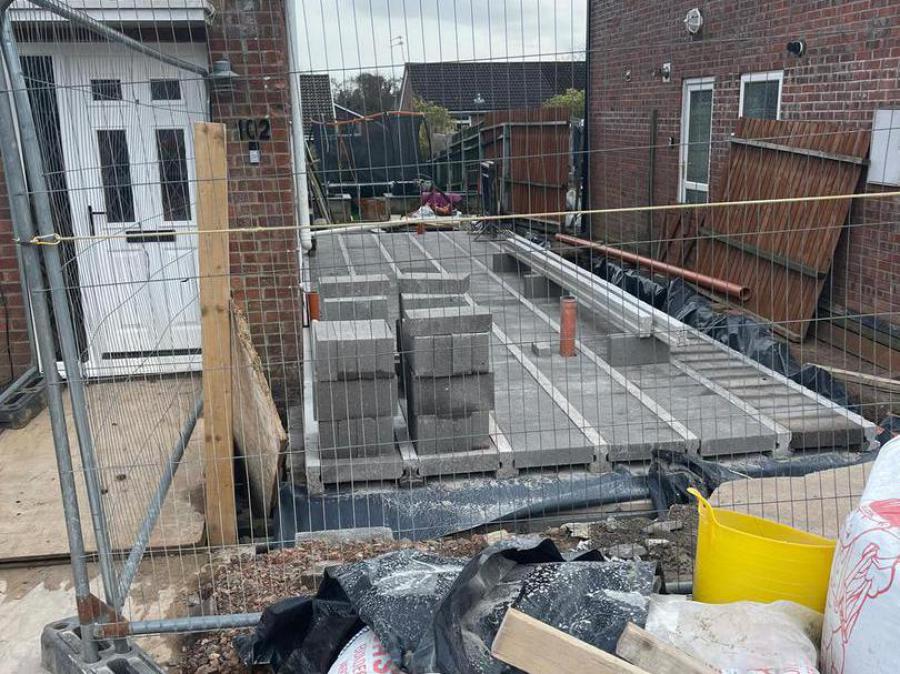

Bison Beam - Ground Floor

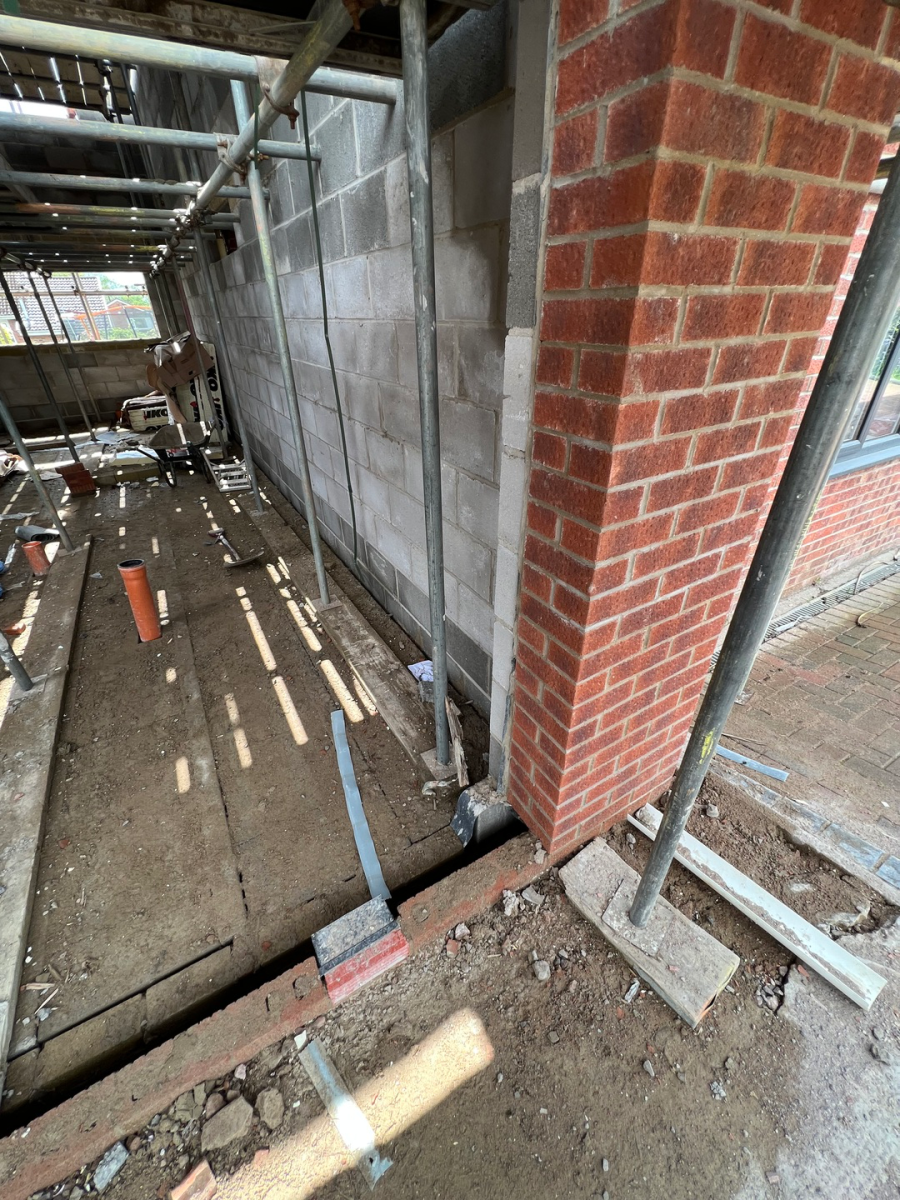

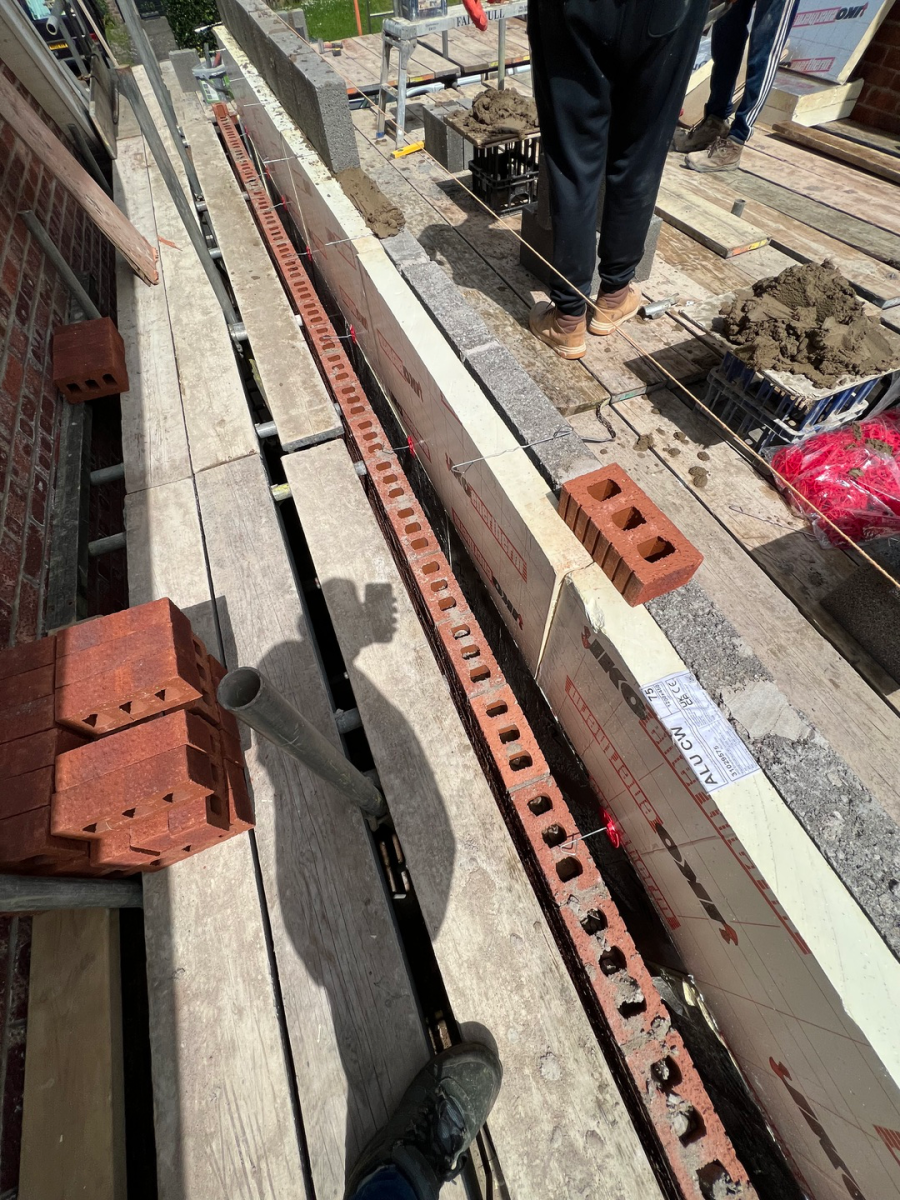

Cavity Wall Construction
Cavity Wall Construction
Stage 4 - Steel Work, Lintels and Topping Out

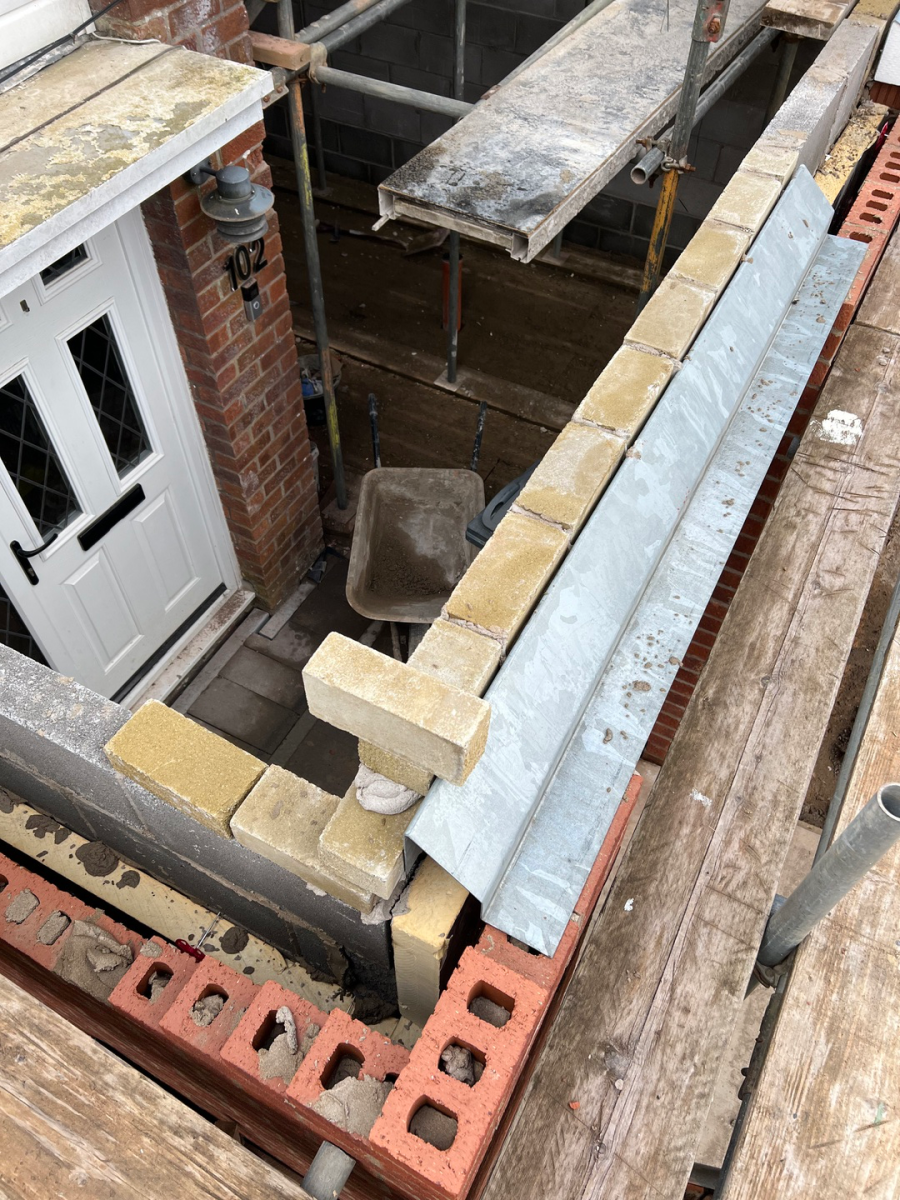

Catnic Cavity Lintels

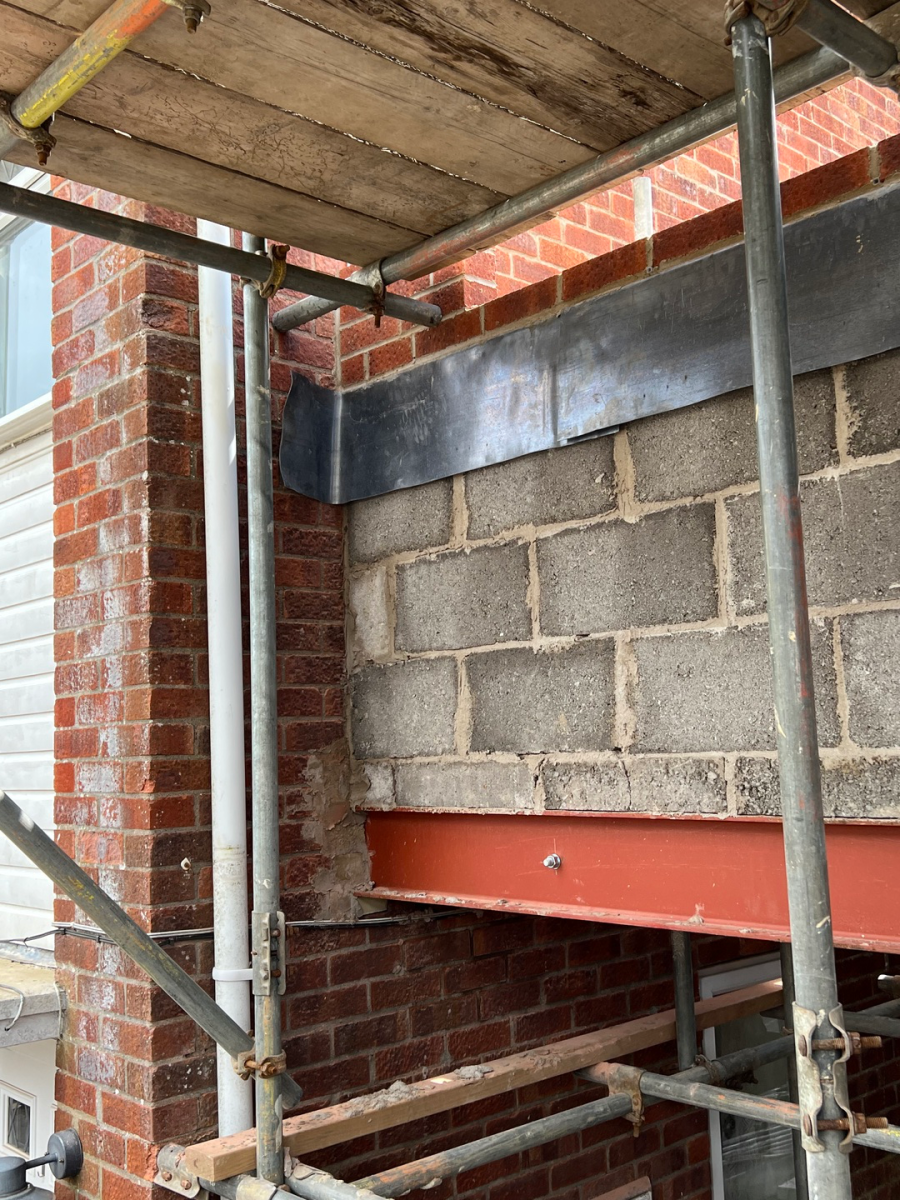

Steel Beams - Flashings

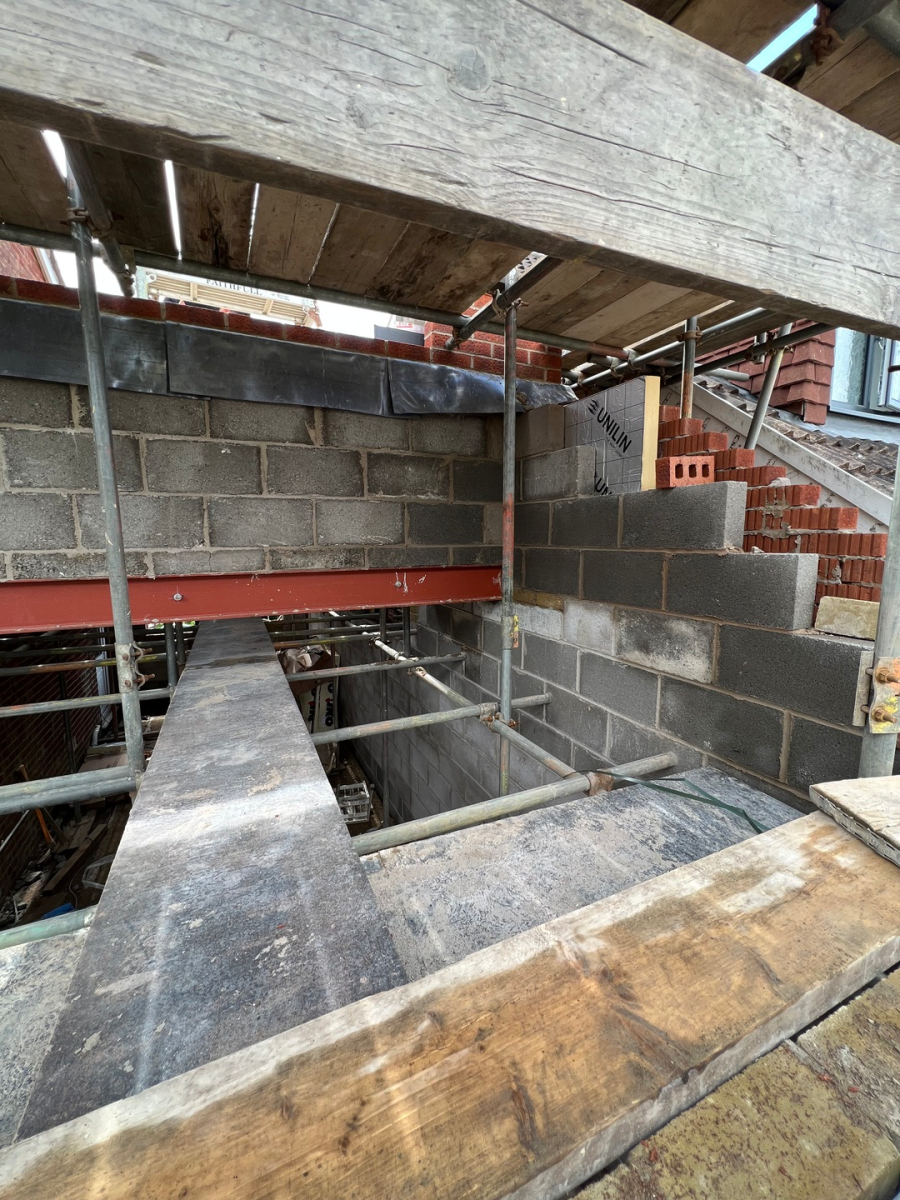

Steel Beams & Connections
Stage 5 - Roofing

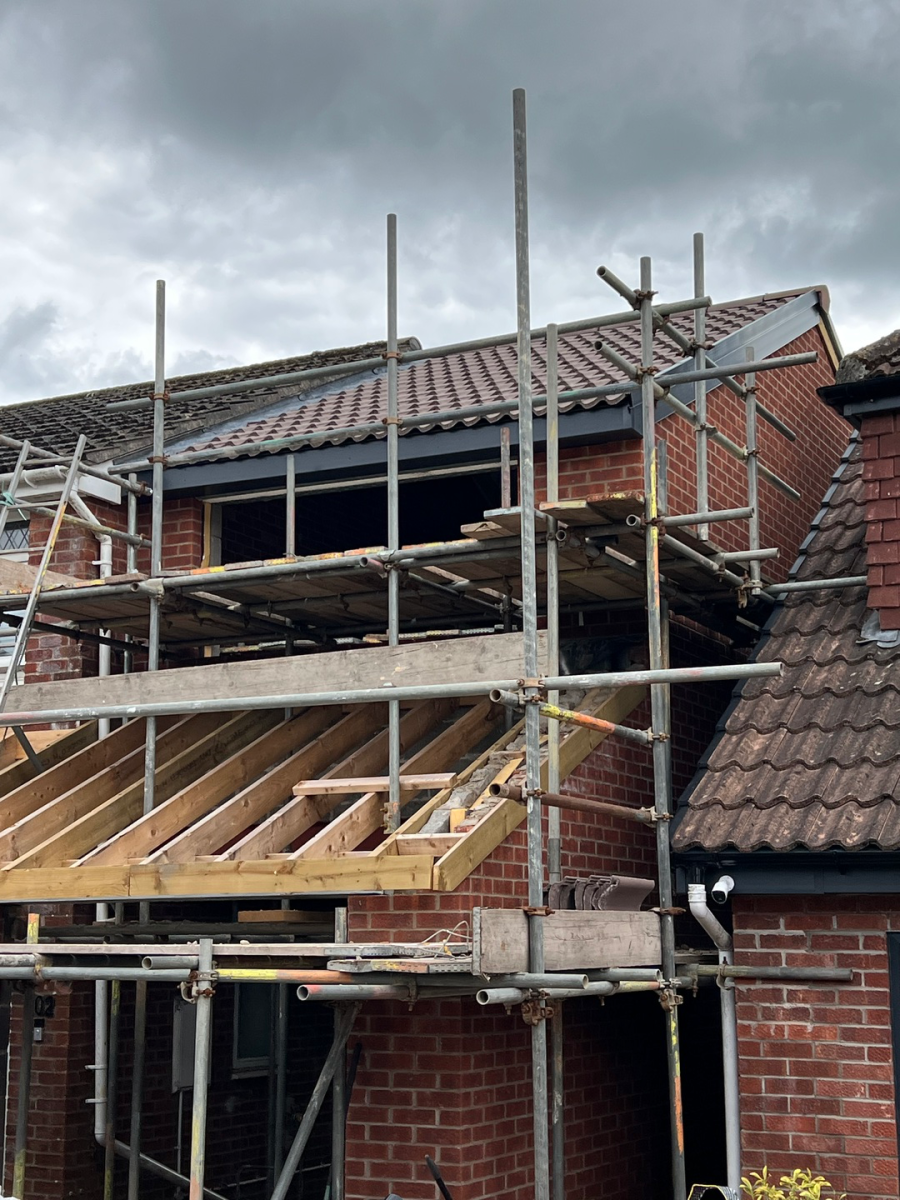

Roofing

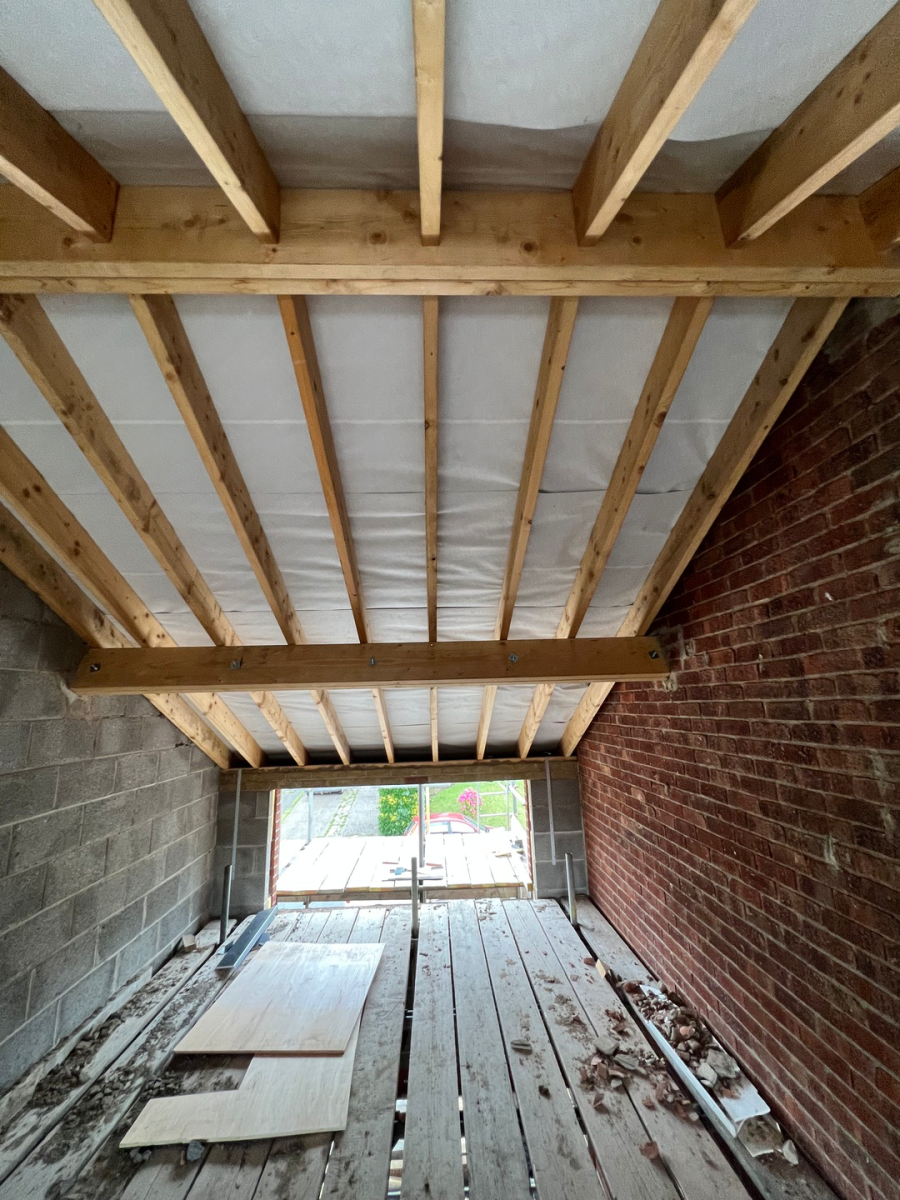

Rafters / Purlins / Ridge

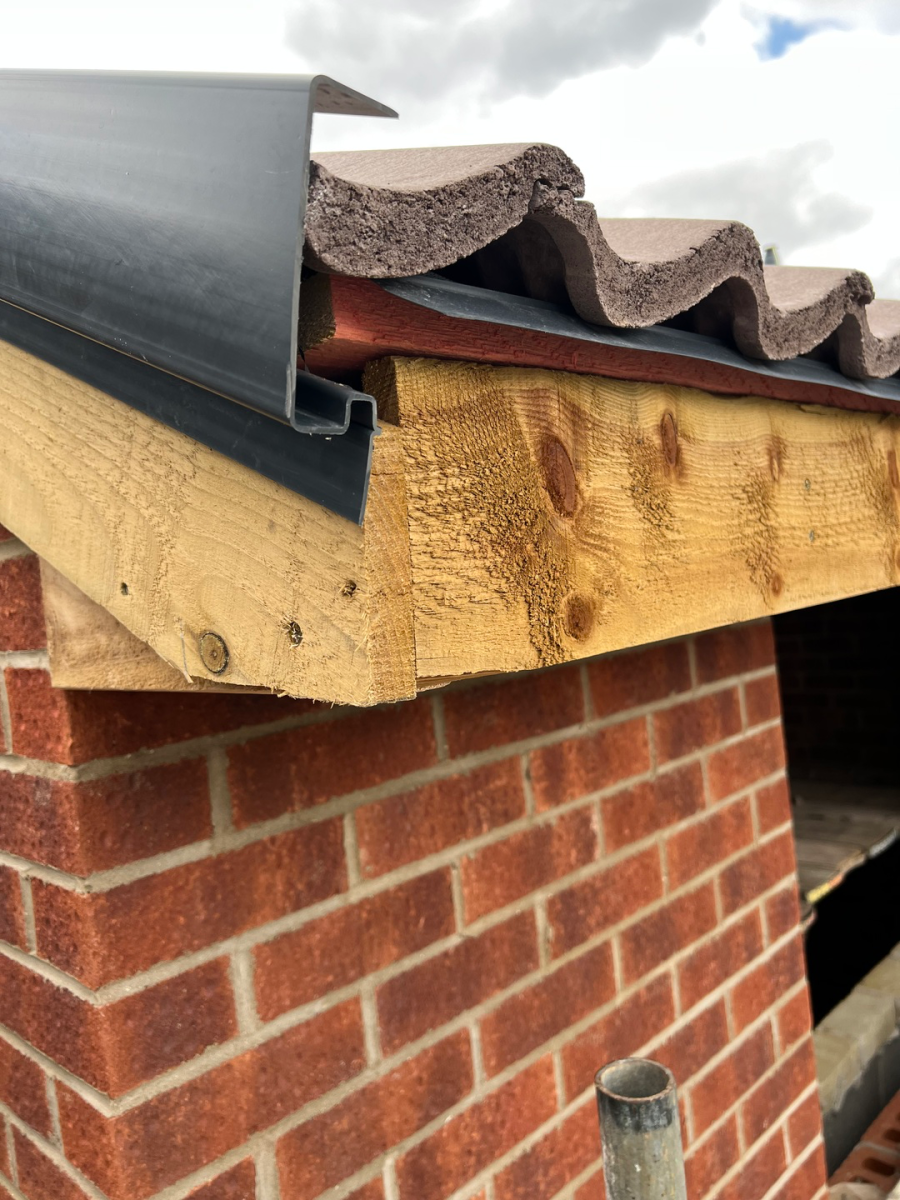

Fascias & Soffits
